24-key Infrared Controller-Shenzhen Ledlighting Technology Co.,Ltd._

Home > Products > Accessories & Components > Lighting Control System >Others Control System

24-key Infrared Controller

MOQ ： piece

Lead Time ： Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : T/T,Western Union

Departure Port : Shenzhen

Product details

Supply Ability

Warranty(Year)：1 Year

Packaging & Delivery

Length：41 cmWidth：41 cm
Height：26 cm
Packaging：120 piece

Product Specifications

Product Description

led controller rgb controller strip light controller

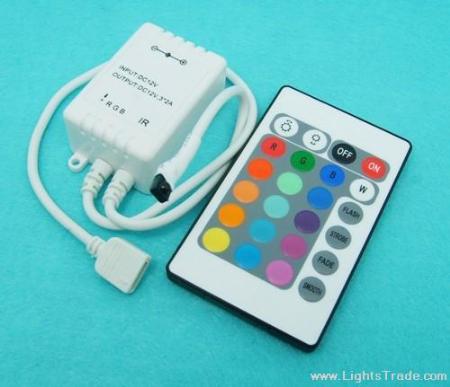

IR LED CONTROLLER/ 24-key infrared controller is a kind of led controller that can be used for controlling a variety of lamp...

Summarization

IR led controller /24-key infrared led controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; It can controlled with strip lights.it has many advantages such as low price, easy connection and simplicity to use. Meanwhile,you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.

Technical Parameters

Working temperature-20-60

Supply voltage: DC5V, 12V, 18V, 24V <optional >(for orders specify voltage)

0utput: 3 channels

Connecting modecommon anode

External dimensionL89.2W70H27.5 mm

Packing sizeL105W65H40 mm

Net weight: 50 g

Gross weight: 85 g

Static power consumption: <1 W

Output current: <2 A (each channel)

Output power: 5 V: <30W, 12V: <72W, 24V: <144W
